How to fetch smart contract data using subgraphs with Ormi Labs

Note: This guide was created by the Ormi team. If you notice anything outdated, please reach us at hello@ormilabs.com

Intro

Indexing and querying smart contract data can be difficult without the right tools. With Ormi’s 0xGraph, anyone can deploy and query subgraphs on the Katana Network in minutes, for free.

How to deploy a Subgraph

Ormi supports mutiple deployment methods, from beginner friendly to advance:

• Basic: Deploy a subgraph using a smart contract address
• Basic: Migrate an existing subgraph using a deployment ID
• Intermediate: Deploy via The Graph CLI
• Advanced: Build from scratch with your own manifest, schema, and mappings

In this guide, we’ll cover three options:

• Deploy using a smart contract address
• Migrating with a deployment ID
• Building a subgraph from scratch

For deploying via CLI, see our separate guide.

Prerequisites

An Ormi Labs account: create one here

How to deploy subgraphs using a smart contract address

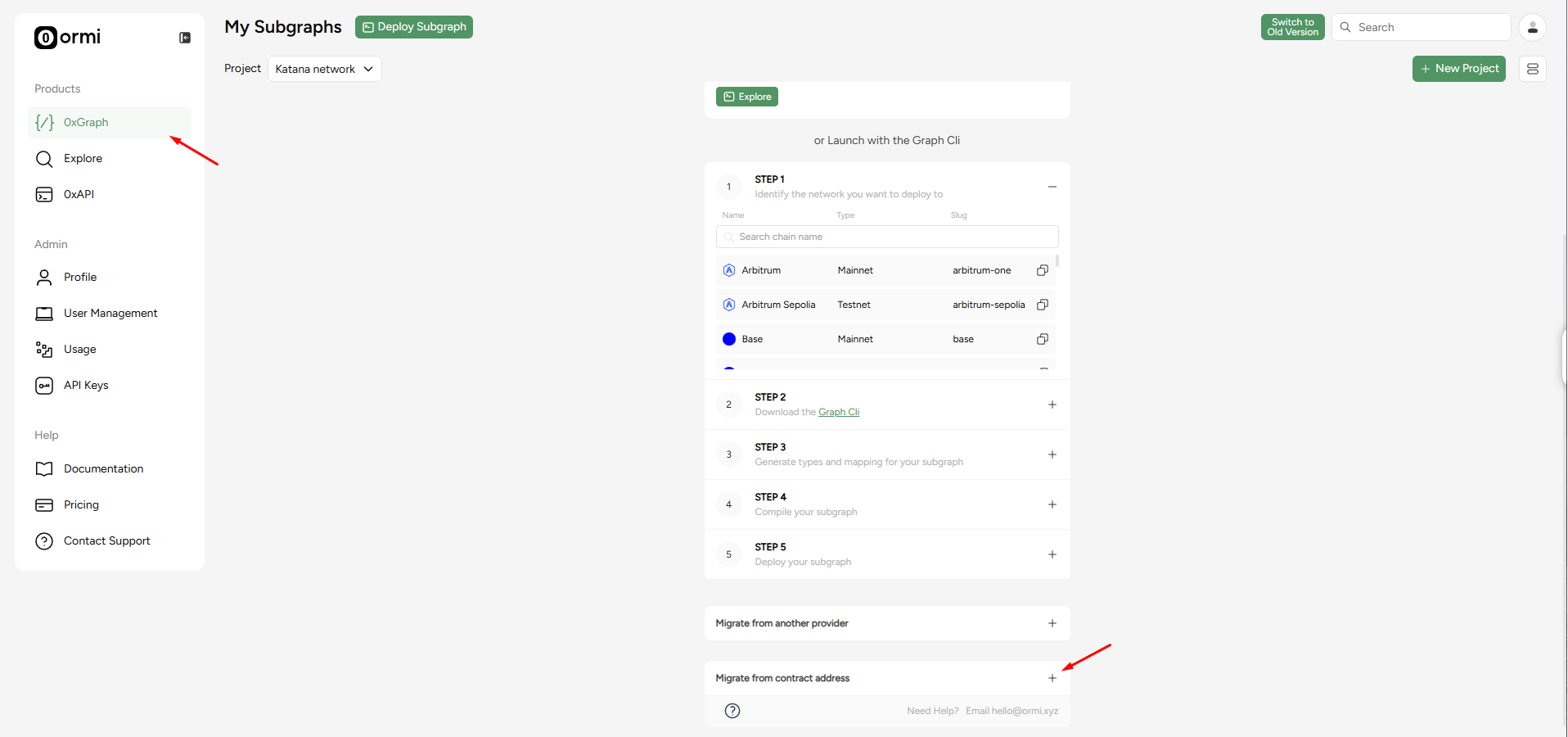

1. In the Ormi dashboard, click 0xGraph

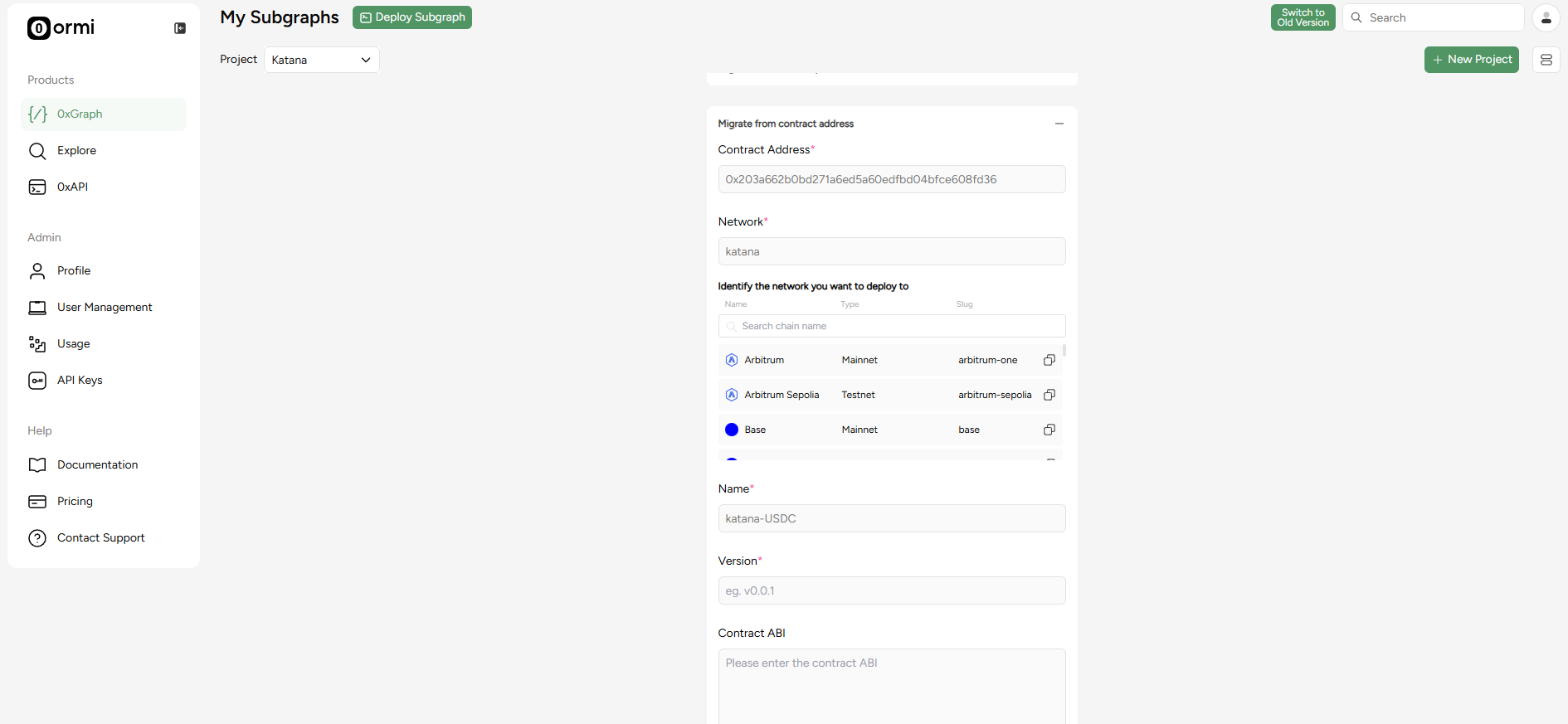

2. Expand the migrate from contract address section

For this example, we’ll use VaultBridge’s Bridged USDC:

Contract address: 0x203A662b0BD271A6ed5a60EdFbd04bFce608FD36

Network: Katana

Name: katana-vbusdc

Version: v.1

Note: If the ABI cannot be auto-fetched, you may need to upload it manually.

For vbUSD, you will need to fetch the implementation contracts’ ABI, so head over to Katanascan.

Implementation contract: 0x5e875267f65537768435C3C6C81cd313a570B422

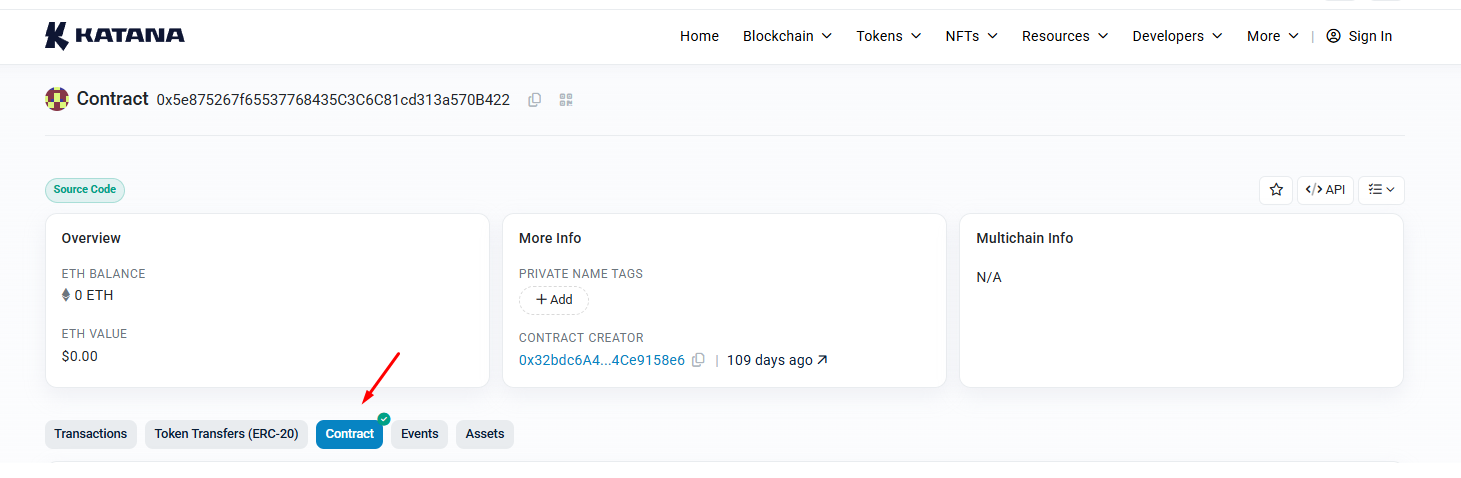

Press on the contract tab.

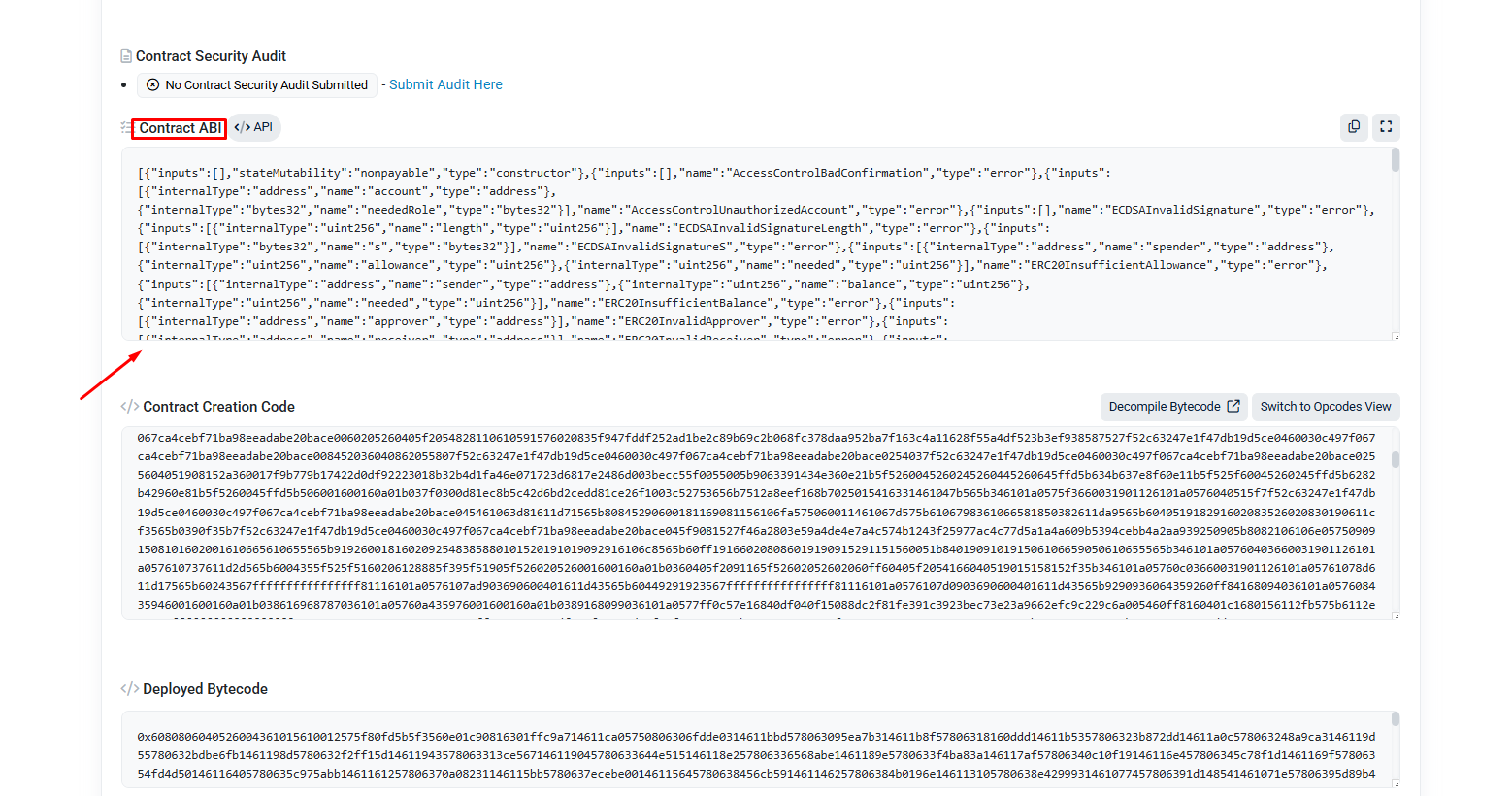

Scroll down to the bottom, and copy the Contract ABI.

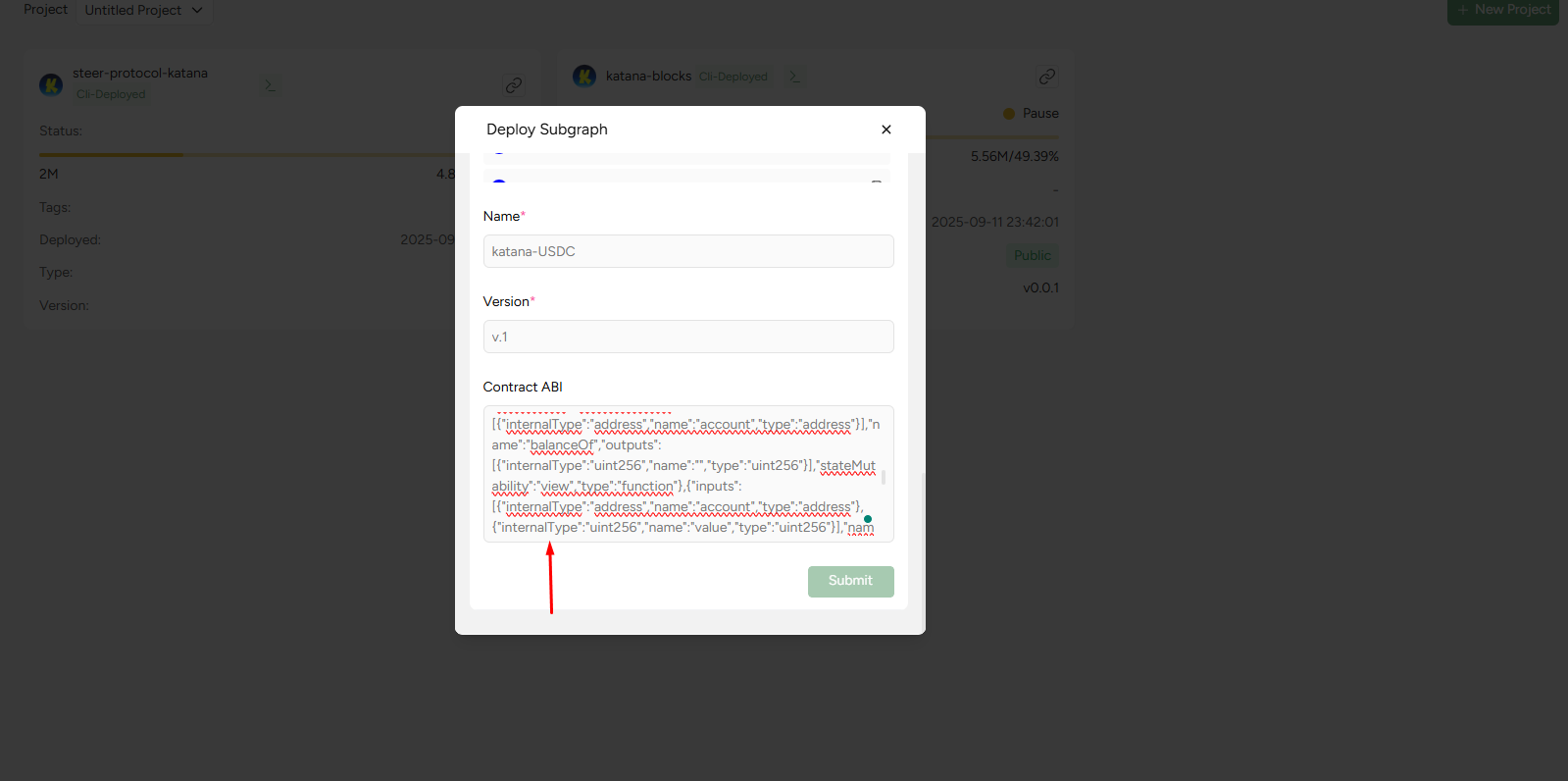

Paste Contract ABI into this section and press submit.

Once submitted, the system will process your request. When it finishes loading, you’ll be taken to the next screen.

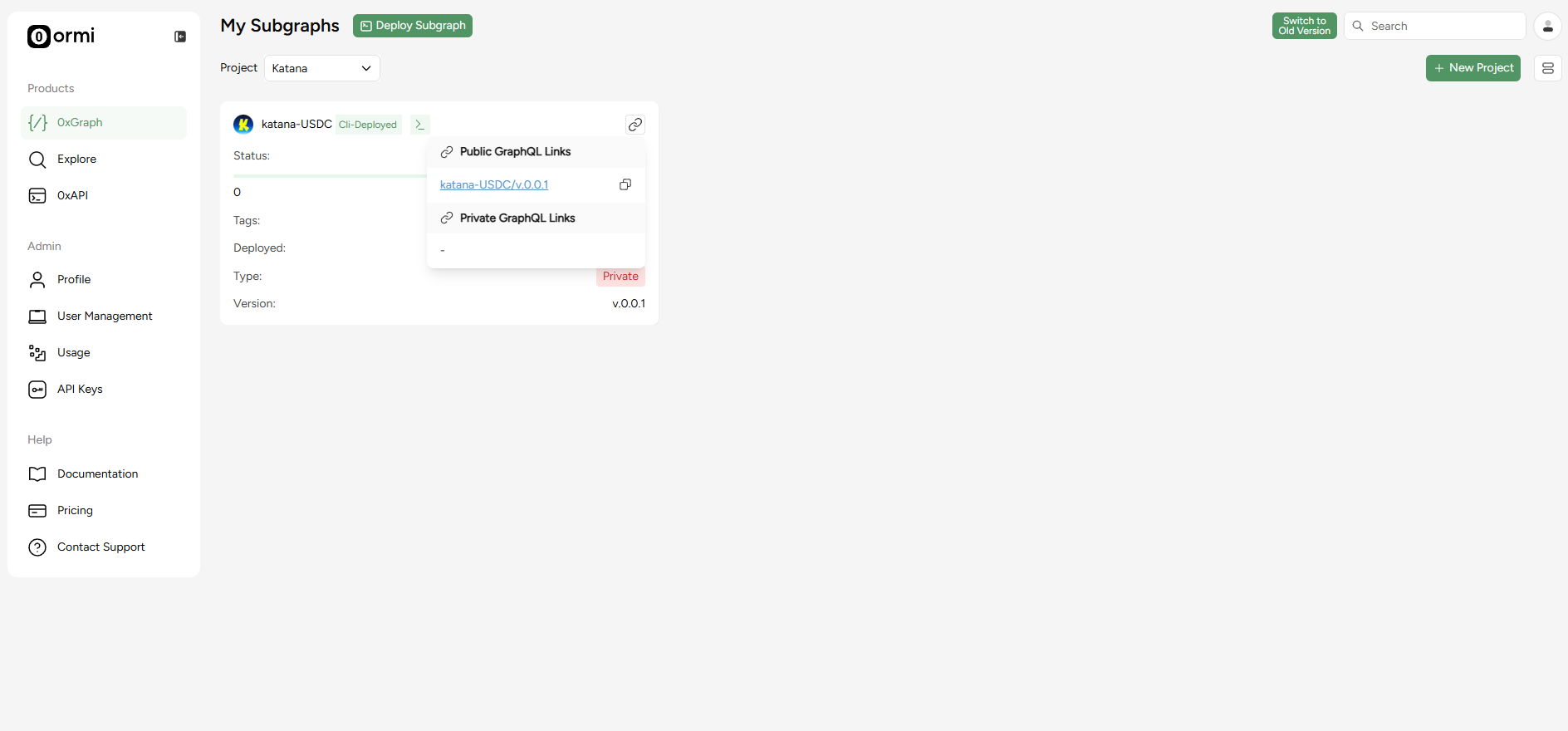

When your subgraph finishes syncing, you can start querying immediately by clicking the graphql link.

---

Migrate a subgraph using a deployment ID

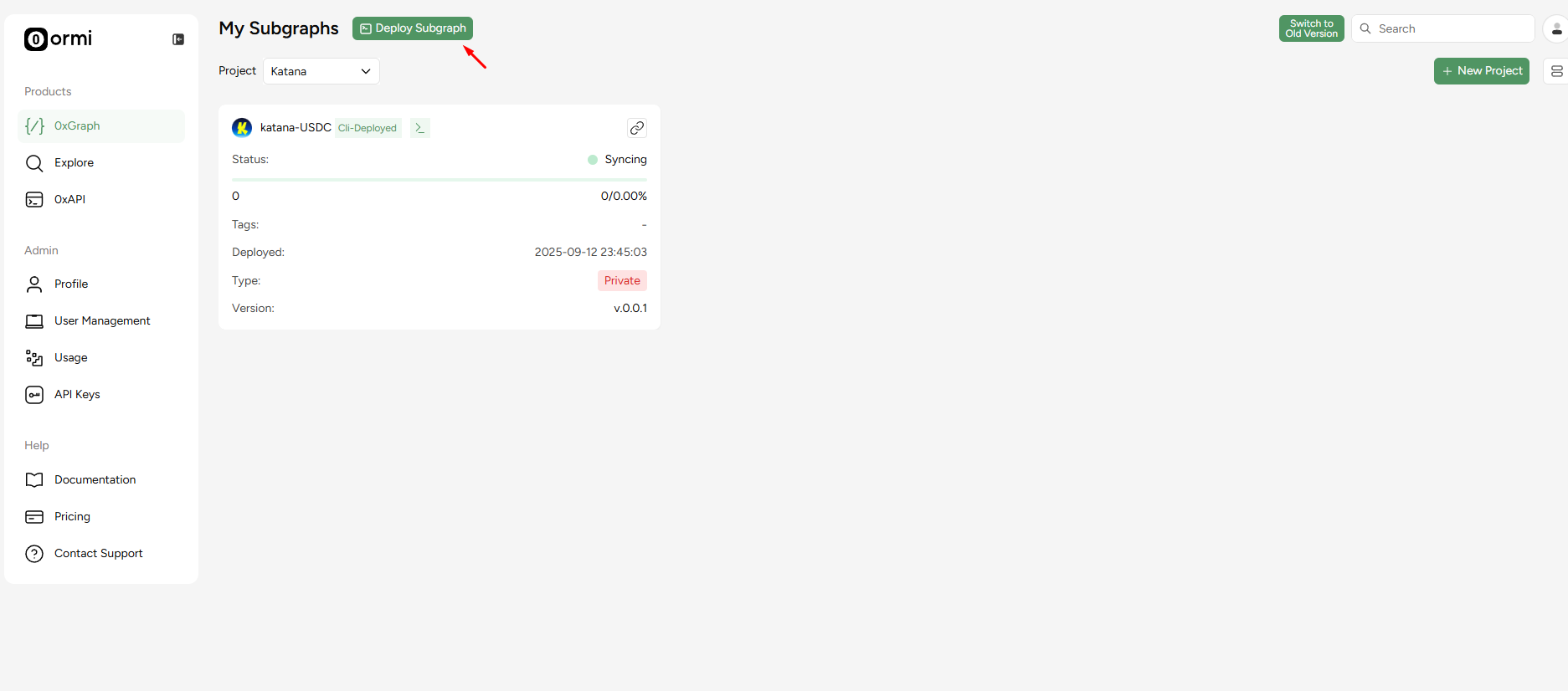

In the dashboard, click Deploy a subgraph (top navigation).

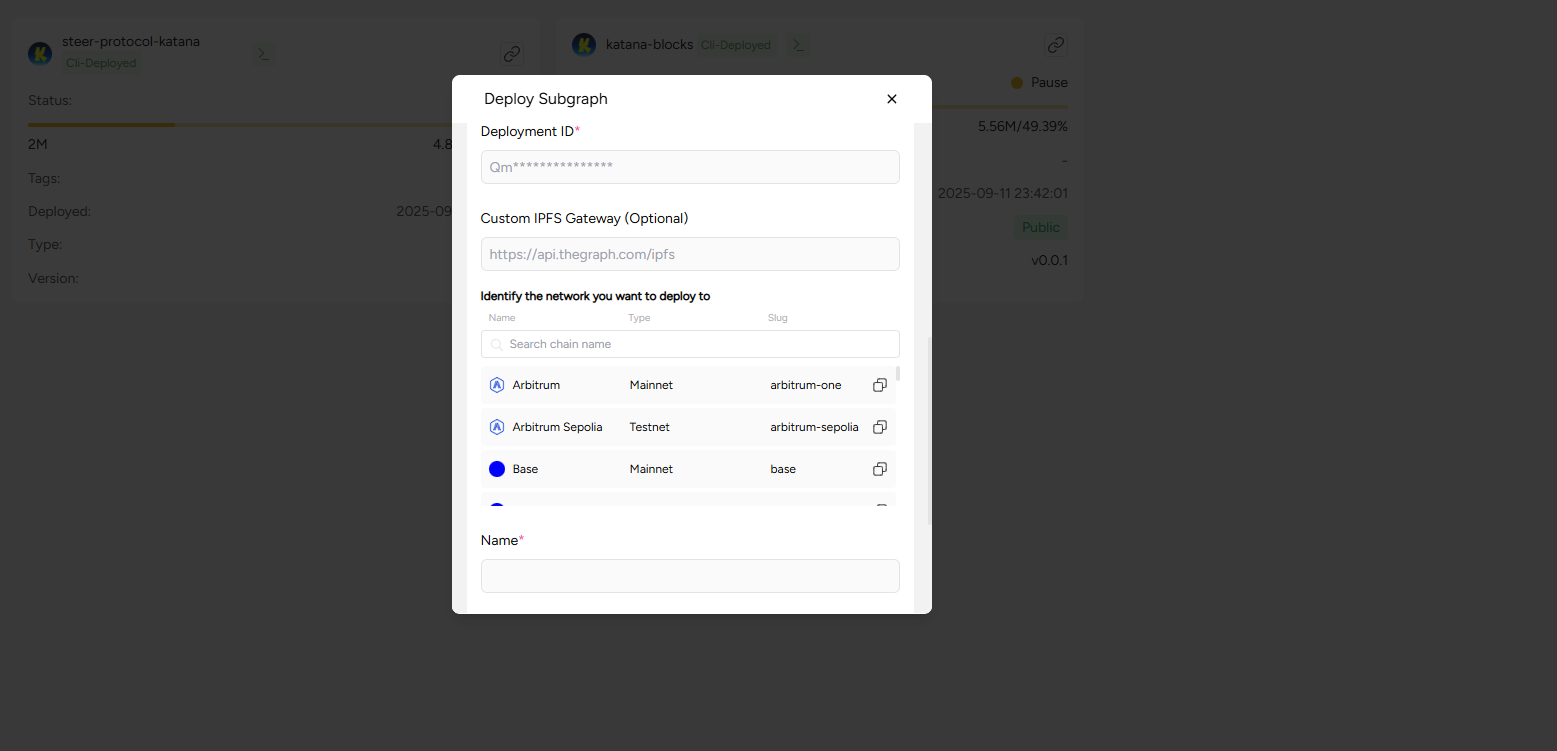

A new window will open. Provide the following: * Deployment ID * Name * Version

For example, to migrate SushiSwap from: TheGraph’s explorer.

Deploment ID: QmQRhuvVQ4MahD7u5Z3d6NJ2BRfaKYhc3RbNY31FuNQdBi Name: katana-v2-sushiswap Version: v.0.0.1

After entering these details, you’ll be redirected to the 0xGraph dashboard, where your subgraph will start syncing automatically.

That’s it! Once your subgraph syncs, you’ll be able to query data directly through Ormi’s 0xGraph

---

How to build a subgraph from scratch using Ormi 0xGraph

What you need

• Graph CLI installed
• node.js installed
• Git installed

Getting started

1. Log in to Ormi and go to your dashboard.

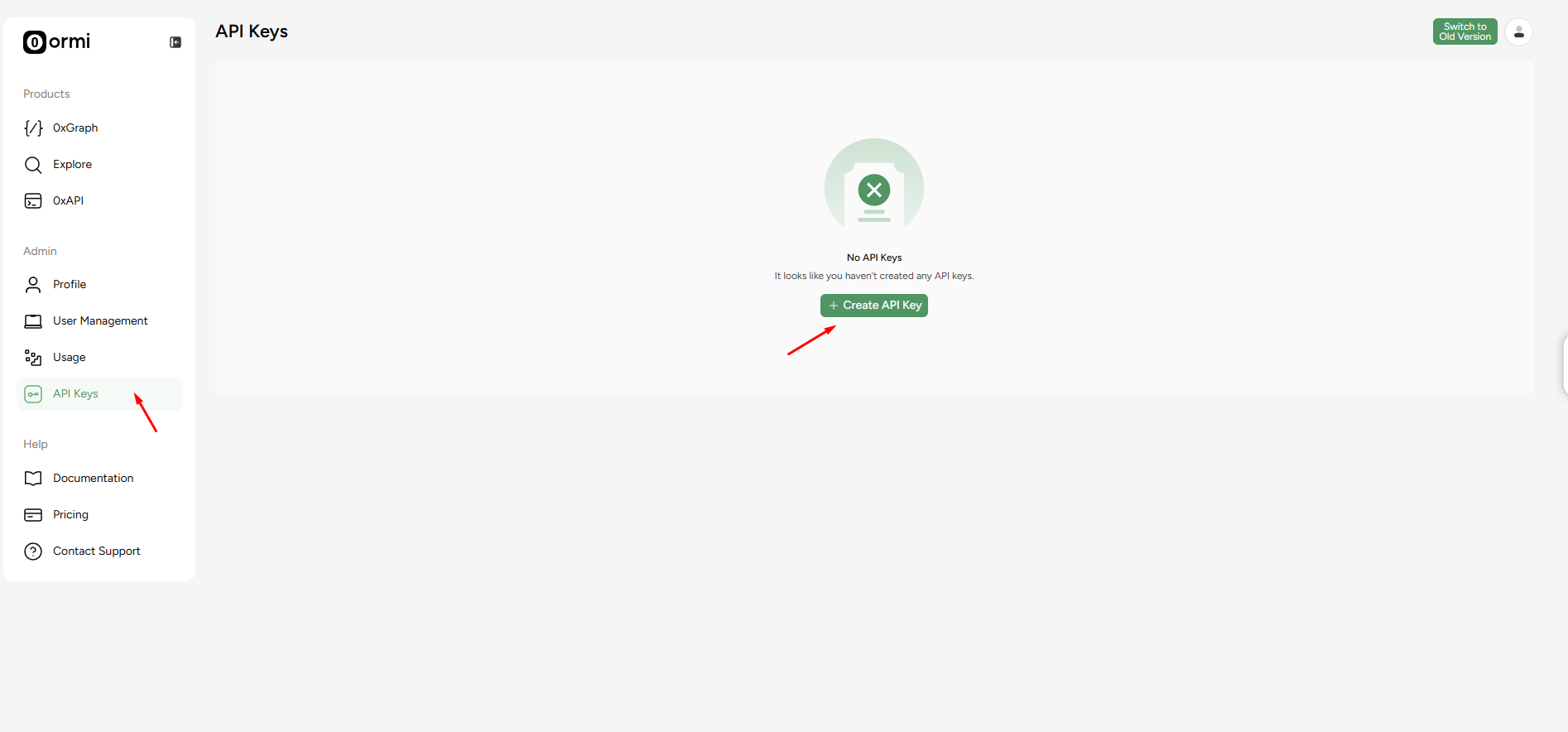

2. From the dashboard, create an API key for deployments.

Keep this page open, we’ll need the API key to deploy a subgraph.

Install Graph CLI

On your local machine, run the following in your terminal:

npm install -g @graphprotocol/graph-cli

Create a directory for your subgraph

mkdir katana-blocks
cd katana-blocks

We’ll call the folder katana-blocks in this example.

Initialize Node project

Run bash in the directory folder

npm init -y

Install dependencies

npm install --save-dev @graphprotocol/graph-ts
npm install --save-dev assemblyscript

Create the required files

You will need:

• subgraph.yaml
• schema.graphql
• mappings/blocks.ts
• abis/Dummy.json

subgraph.yaml

specVersion: 0.0.5
description: Blocks indexer for Katana
schema:
  file: ./schema.graphql

dataSources:
  # We declare a contract data source so we can attach a blockHandler.
  # The "Dummy" ABI is unused but required by the manifest when kind=ethereum/contract.
  - kind: ethereum/contract
    name: KatanaBlocks
    network: katana
    source:
      address: "0x0000000000000000000000000000000000000000"  # not used
      abi: Dummy
      startBlock: 1
    mapping:
      kind: ethereum/events
      apiVersion: 0.0.7
      language: wasm/assemblyscript
      entities:
        - Block
      abis:
        - name: Dummy
          file: ./abis/Dummy.json
      # This is the key: run our handler every block
      blockHandlers:
        - handler: handleBlock
      file: ./mappings/blocks.ts

Note: Dummy.json is required because every data source must include at least one ABI, even if unused. Just put [] inside it.

schema.graphql

type Block @entity(immutable: true) {
  id: ID!            # we will use the block number as the ID
  number: BigInt!
  timestamp: BigInt!
  hash: Bytes!
  parentHash: Bytes!
}

Mapping files in typescript

import { Block as BlockEntity } from "../generated/schema";
import { ethereum } from "@graphprotocol/graph-ts";

export function handleBlock(block: ethereum.Block): void {
  // Use block number as the stable ID
  let id = block.number.toString();

  let entity = new BlockEntity(id);
  entity.number = block.number;
  entity.timestamp = block.timestamp;
  entity.hash = block.hash;
  entity.parentHash = block.parentHash;
  entity.save();
}

Directory layout

katana-blocks/
├─ abis/
│  └─ Dummy.json
├─ mappings/
│  └─ blocks.ts
├─ schema.graphql
└─ subgraph.yaml

You’ll also see node_modules/ after installing dependencies - that’s expected.

Build the Subgraph

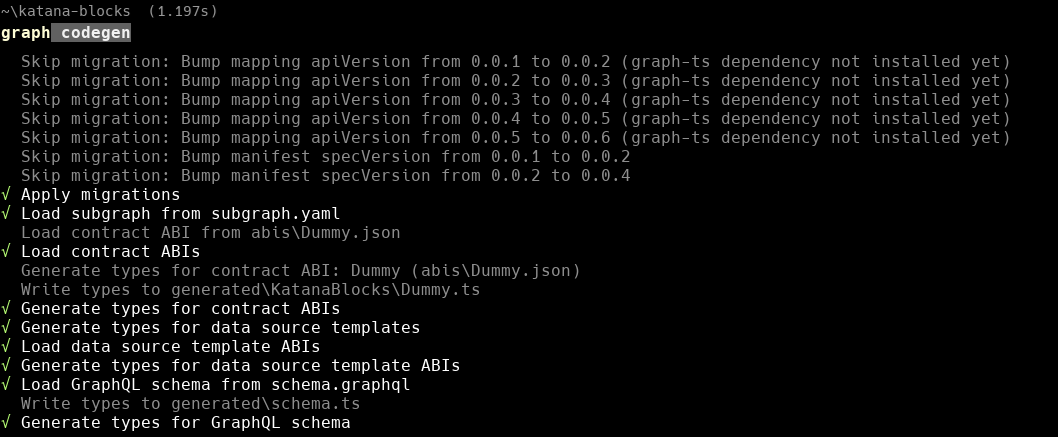

Generate types:

graph codegen

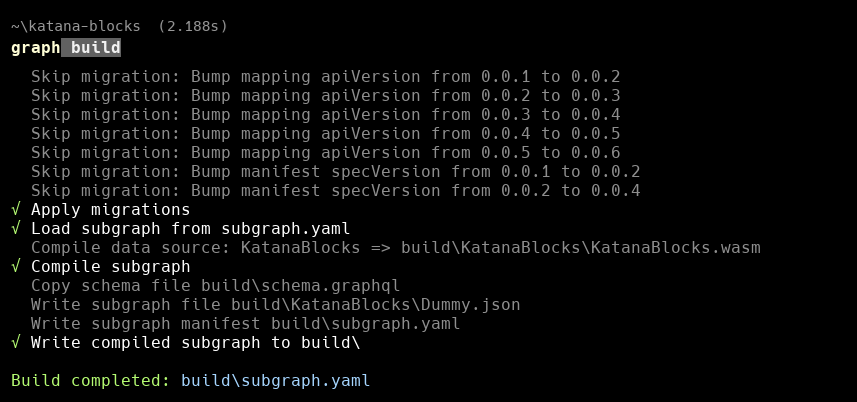

Now run:

graph build

Deploy the Subgraph to Ormi 0xGraph

Return to your API key from the dashboard. Replace and with your actual values

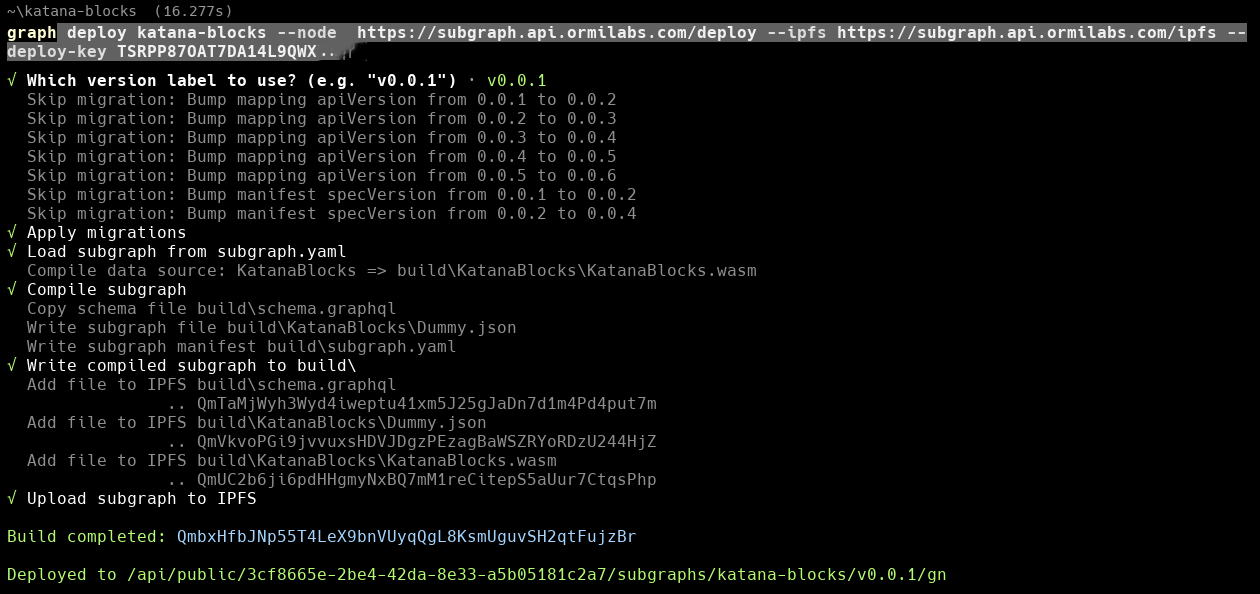

graph deploy <graph-name> --node  https://subgraph.api.ormilabs.com/deploy --ipfs https://subgraph.api.ormilabs.com/ipfs --deploy-key <API key>

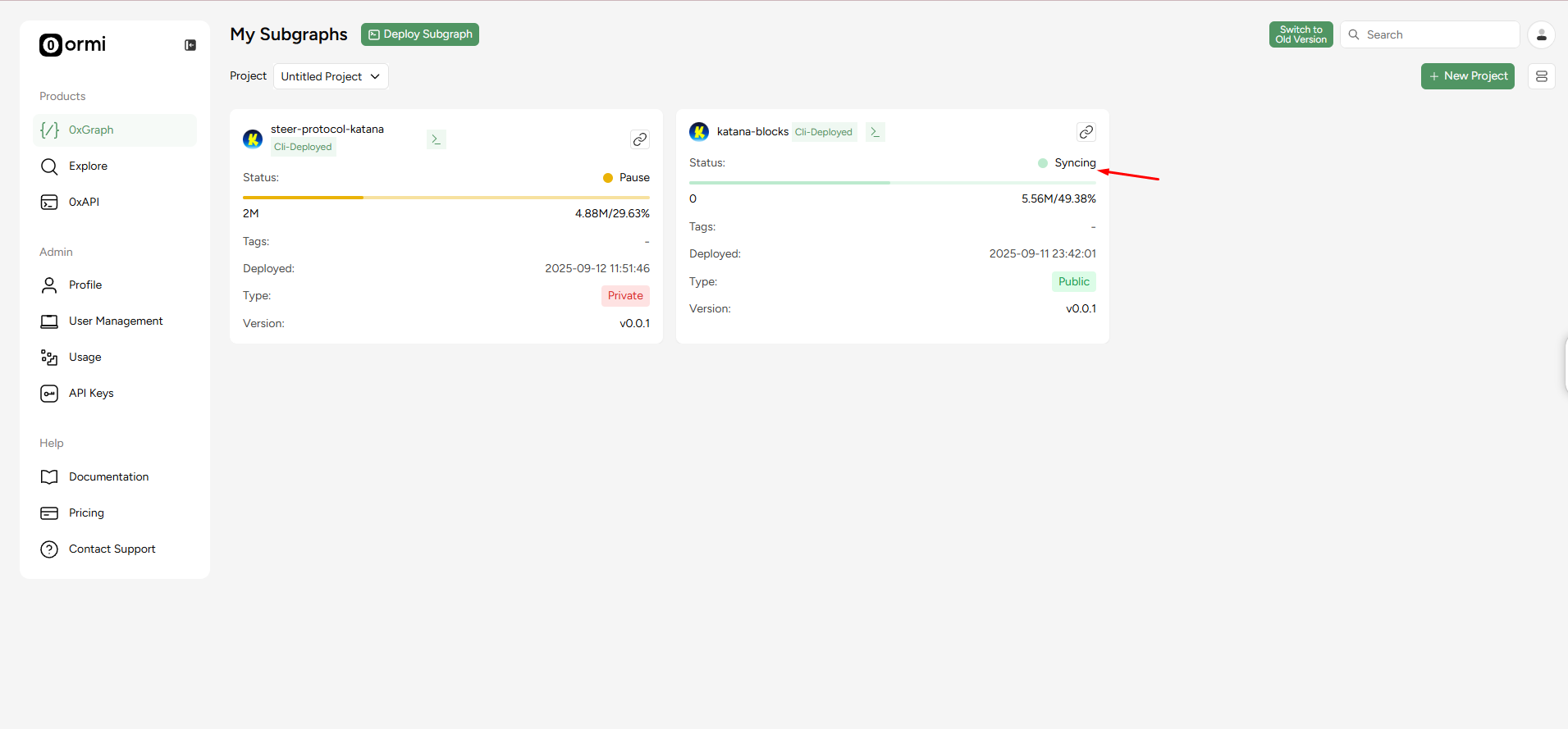

Track sync status

You can check syncing in the dashboard by going to the Subgraphs tab:

Query Katana blocks

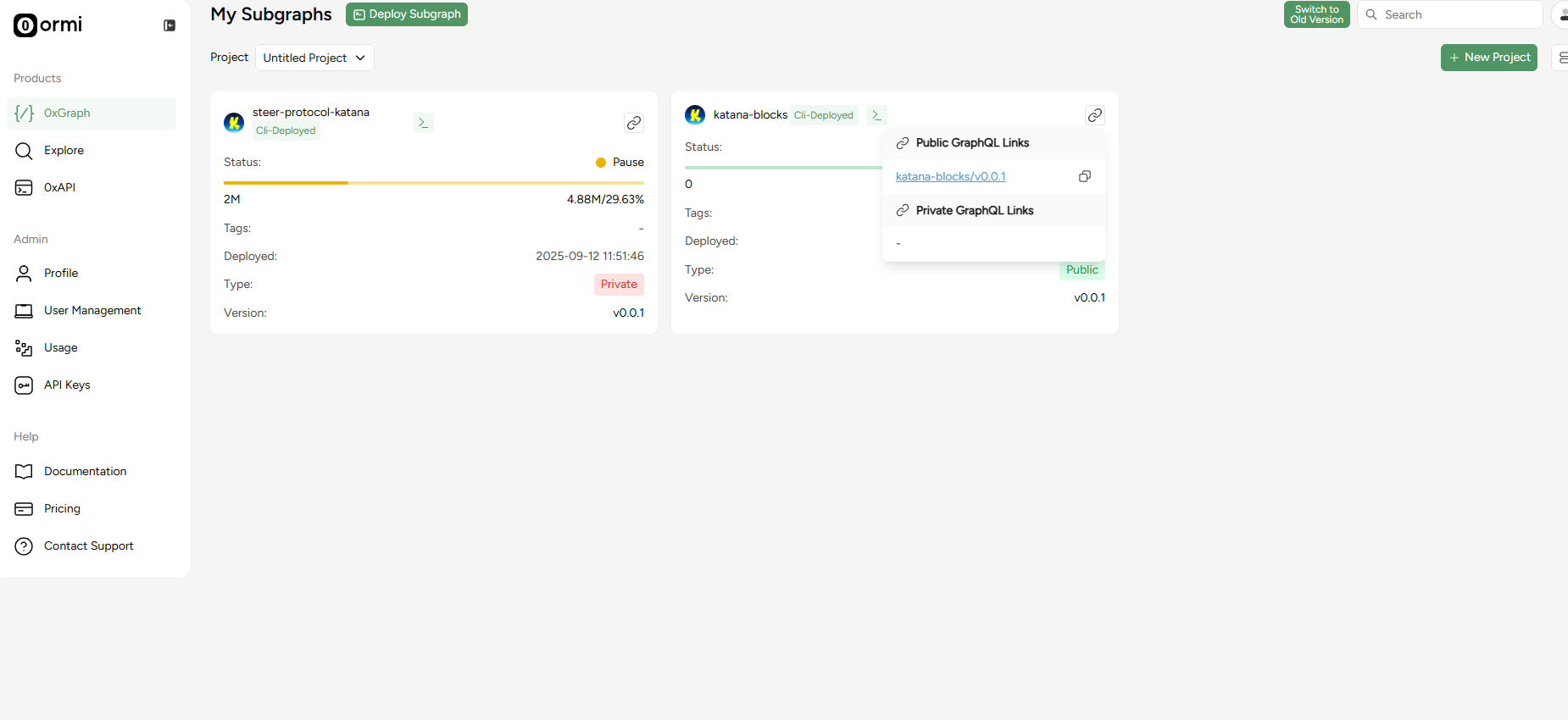

Click on the button where the red arrow is pointing.

Once synced, click the GraphQL endpoint link in the dashboard.

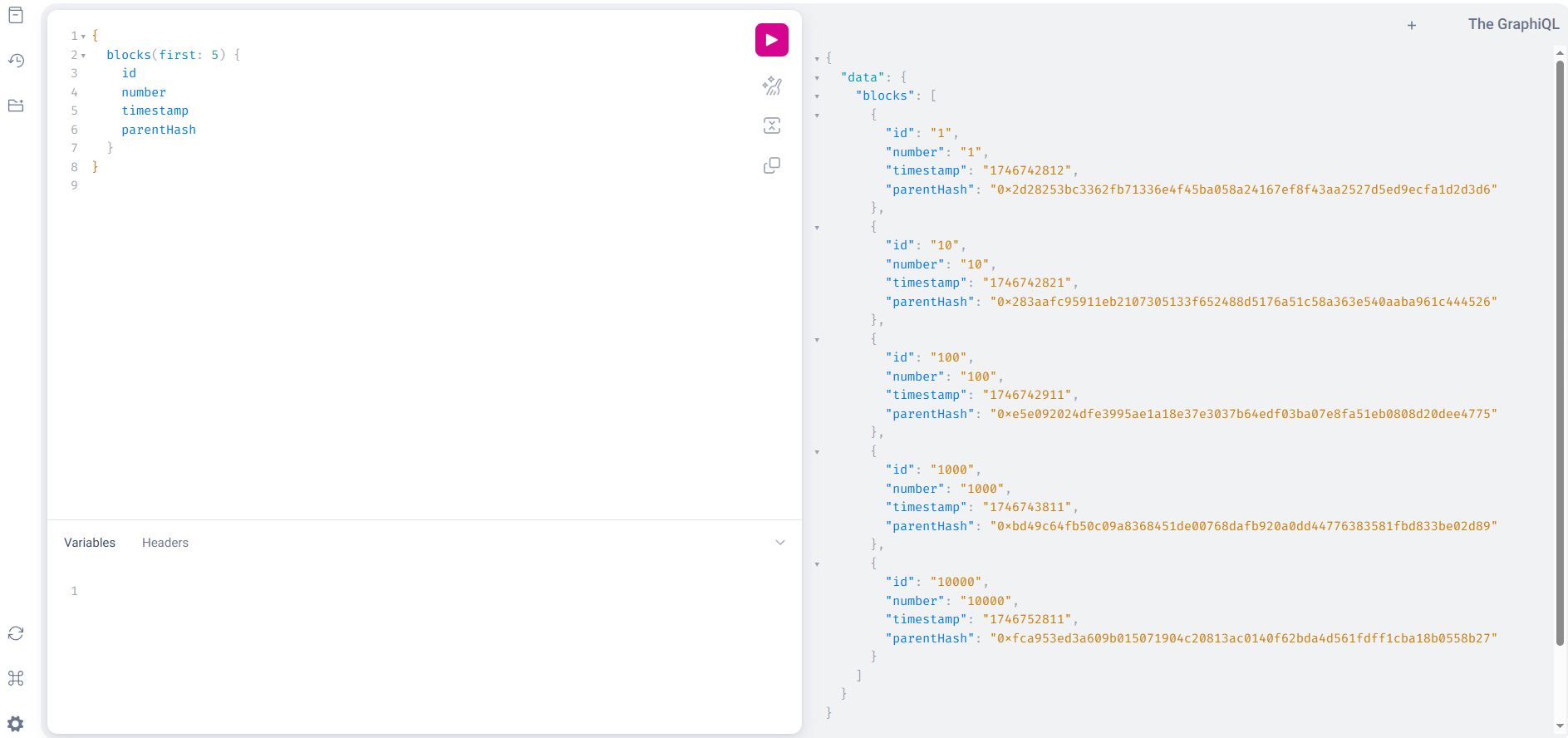

Sample query

Run this query to fetch the latest 5 blocks

{
  blocks(first: 5) {
    id
    number
    timestamp
    parentHash
  }
}

Done!

You now have a live subgraph indexing Katana blocks through Ormi’s 0xGraph.
