Integrate Enso DeFi Shortcuts

Enso DeFi Shortcuts simplify protocol interactions by offering a unified interface to different DeFi protocols via SDK and REST API.

Enso’s crosschain APIs return executable atomic transaction objects that implement the optimal route between DeFi ositions:

  • /route API: Define input/output positions and receive optimized execution pathways.
  • /bundle API: Construct custom sequences of protocol interactions.

Info

This guide was written by the Enso team. For up-to-date guides refer to Enso developer documentation. For any questions or integration reach out to Enso developer group.

flowchart LR
    A((USDC)) --> B{enso.split}

    subgraph split ["enso.split"]
        B -->|<b>swap</b> via<br/>sushiswap-router| E((SUSHI))
        B -->|<b>keep as</b><br/>USDC| F((USDC))
    end

    E -->|<b>deposit</b> via<br/>steer| G((STEERUV12))
    F -->|<b>deposit</b> via<br/>steer| G

The supporting APIs provide comprehensive data about:

For additional examples, browse the Use Case Library.

Integration

To accelerate development, explore:

Crosschain Lending

This example shows crosschain minting and liquidity provisioning. The rUSD stablecoin is minted on Ethereum Mainnet, brirdget (through wsrUSD) and deposited in the appropriate Morpho vault.

flowchart LR
    subgraph ethereum ["🌐 Ethereum"]
        USDC_ETH((USDC))
        USDC_ETH -->|enso<br/>route| wsrUSD_ETH((wsrUSD))
    end

    wsrUSD_ETH -.->|stargate<br/>bridge| wsrUSD_KATANA((wsrUSD))

    subgraph katana ["⚔️ Katana"]
        wsrUSD_KATANA -->|morpho-markets-v1<br/>deposit| MORPHO_SHARES((Morpho<br/>wsrUSD/vbUSD))
    end
  style MORPHO_SHARES stroke-dasharray: 5 5
const KATANA_ID = 747474;
const ETHEREUM_ID = 1;

// Common addresses
const WALLET_ADDRESS = "0x93621DCA56fE26Cdee86e4F6B18E116e9758Ff11"; // User wallet

// Token addresses
const MORPHO = "0xD50F2DffFd62f94Ee4AEd9ca05C61d0753268aBc";
const USDC_ETHEREUM = "0xA0b86991c6218b36c1d19D4a2e9Eb0cE3606eB48";
const wsrUSD_KATANA = "0x4809010926aec940b550D34a46A52739f996D75D";
const wsrUSD_ETHEREUM = "0xd3fd63209fa2d55b07a0f6db36c2f43900be3094";

const wsrUSD_MORPHO_POSITION_ID =
  "0xd8a93a4cd16f843c385391e208a9a9f2fd75aedfcca05e4810e5fbfcaa6baec6";

const client = new EnsoClient({
  apiKey: process.env.ENSO_API_KEY!,
});

// LayerZero pool addresses
const wsrEthToKatanaPools = await client.getLayerZeroPool({
  chainId: ETHEREUM_ID,
  token: wsrUSD_ETHEREUM,
  destinationChainId: KATANA_ID,
  destinationToken: wsrUSD_KATANA,
});

console.log(JSON.stringify(wsrEthToKatanaPools), !wsrEthToKatanaPools.length);

if (!wsrEthToKatanaPools.length) {
  throw new Error("Required pools not available");
}

const bundle = await client.getBundleData(
  {
    chainId: ETHEREUM_ID,
    fromAddress: WALLET_ADDRESS,
    spender: WALLET_ADDRESS,
    routingStrategy: "router",
  },
  [
    // mint rUSD on Ethereum, swap for wsrUSD_ETHEREUM in 1 action
    {
      protocol: "enso",
      action: "route",
      args: {
        amountIn: parseUnits("1000", 6).toString(), // 1000 USDC
        tokenIn: USDC_ETHEREUM,
        receiver: WALLET_ADDRESS,
        tokenOut: wsrUSD_ETHEREUM,
      },
    },
    {
      protocol: "stargate",
      action: "bridge",
      args: {
        primaryAddress: wsrEthToKatanaPools[0].pool,
        destinationChainId: KATANA_ID,
        tokenIn: wsrUSD_ETHEREUM,
        amountIn: { useOutputOfCallAt: 0 },
        receiver: WALLET_ADDRESS,
        callback: [
          // Step 1: Check wsrUSD_KATANA balance on Katana after bridge
          {
            protocol: "enso",
            action: "balance",
            args: {
              token: wsrUSD_KATANA,
            },
          },
          {
            protocol: "morpho-markets-v1",
            action: "deposit",
            args: {
              amountIn: { useOutputOfCallAt: 0 },
              tokenIn: wsrUSD_KATANA,
              receiver: WALLET_ADDRESS,
              primaryAddress: MORPHO,
              positionId: wsrUSD_MORPHO_POSITION_ID,
            },
          },
        ],
      },
    },
  ]
);

Zap deposit USDC to SushiSwap USDC-wETH Liquidity Pool

This route creates SushiSwap LP tokens by splitting USDC and providing liquidity to the USDC/wETH pool.

Try this route →

flowchart LR
    A((USDC)) --> B{enso.split}

    subgraph split ["enso.split"]
        B -->|<b>swap</b> via<br/>sushiswap-router| E((WETH))
        B -->|<b>keep as</b><br/>USDC| F((USDC))
    end

    E -->|<b>addLiquidity</b> via<br/>sushiswap-v2| G((USDC/ETH LP))
    F -->|<b>addLiquidity</b> via<br/>sushiswap-v2| G

Route mechanics:

  1. Split USDC into two paths via enso
    1. Swap a portion of USDC to wETH via sushiswap-router
    2. Keep a portion of USDC
  2. Deposit USDC and wETH to SLP via sushiswap-v2
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
export async function usdcSushiswapLpToken() {
  const chainId = 747474;
  const TOKEN_IN = "0x203A662b0BD271A6ed5a60EdFbd04bFce608FD36"; // USDC
  const TOKEN_OUT = "0xf9B1AE5F1929F9A4De548e98e0393ae1A9d1D0f8"; // SLP
  const amountIn = parseUnits("100", 6);

  const routeParams: RouteParams = {
    fromAddress: userAddress,
    receiver: userAddress,
    chainId: chainId,
    destinationChainId: 747474,
    amountIn: [amountIn.toString()],
    tokenIn: [TOKEN_IN],
    tokenOut: [TOKEN_OUT],
    routingStrategy: "router",
    slippage: "150",
    referralCode: "build-on-katana"
  };

  const approvalData = await client.getApprovalData({
    amount: amountIn.toString(),
    chainId: chainId,
    tokenAddress: TOKEN_IN,
    fromAddress: userAddress,
  });

  await sendEoa(approvalData.tx, approvalData.gas);
  const route = await client.getRouteData(routeParams);
  await sendEoa(route.tx, route.gas);
  return route;
}

Deposit into a SushiSwap V3 LP

To deposit into Sushiswap V3 AUSD/USDC pool, you need to use the bundle API.

flowchart LR
    A((USDC)) --> B{enso.split}

    subgraph split ["enso.split"]
        B -->|<b>swap</b> via<br/>enso| E((AUSD))
        B -->|<b>keep as</b><br/>USDC| F((USDC))
    end

    E -->|<b>depositclmm</b> via<br/>sushiswap-v3| G((AUSD/USDC<br/>LP))
    F -->|<b>depositclmm</b> via<br/>sushiswap-v3| G

Bundle Design:

  • Input of 100 USDC must be split into 2 tokens: AUSD and USDC, using Enso’s split action that converts 50% of USDC into AUSD, and keeps the rest untouched
  • Deposit using depositclmm action of sushiswap-v3 protocol.
  • tokenIn are the pool’s tokens (USDC/AUSD)
  • amountIn is an array of amounts obtained from the split into USDC and AUSD respectively, using dynamic quantity reference (useOutputOfCallAt).
  • The tokenOut value is the address of Sushiswap’s position manager contract.
  • Provide correct fee and ticks.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
export async function sushiswapV3() {
  const chainId = 747474;
  const fromAddress = "0xd8da6bf26964af9d7eed9e03e53415d37aa96045";

  const tokenIn_USDC = "0x203A662b0BD271A6ed5a60EdFbd04bFce608FD36";
  const tokenIn_AUSD = "0x00000000eFE302BEAA2b3e6e1b18d08D69a9012a";
  const sushiswapManager = "0x2659C6085D26144117D904C46B48B6d180393d27";

  const amountIn = parseUnits("100", 6); // 100 USDC

  const bundle = await client.getBundleData(
    {
      chainId,
      fromAddress,
      routingStrategy: "router",
    },
    [
      {
        // Split USDC into 2 parts for the LP position
        protocol: "enso",
        action: "split",
        args: {
          tokenIn: tokenIn_USDC,
          tokenOut: [tokenIn_AUSD, tokenIn_USDC],
          amountIn: amountIn.toString(),
        },
      },
      {
        protocol: "sushiswap-v3",
        action: "depositclmm",
        args: {
          tokenOut: sushiswapManager,
          ticks: [-114, -86],
          poolFee: "100",
          tokenIn: [tokenIn_AUSD, tokenIn_USDC],
          amountIn: [
            { useOutputOfCallAt: 0, index: 0 }, // AUSD from split
            { useOutputOfCallAt: 0, index: 1 }, // USDC from split
          ],
        },
      },
    ]
  );

  const approvalData = await client.getApprovalData({
    amount: amountIn.toString(),
    chainId,
    fromAddress,
    tokenAddress: tokenIn_USDC,
  });

  // Approve Enso Router contract to operate with USDC
  await sendEoa(approvalData.tx, approvalData.gas);

  // Execute the bundle transaction
  await sendEoa(bundle.tx, bundle.gas);
  return bundle;
}

Deposit WBTC to SushiSwap V2 USDC-ETH LP Position via Multi-Swap

This route uses WBTC to create SushiSwap LP tokens through token splitting and liquidity provision.

Try this route →

flowchart LR
    A((WBTC)) --> B{enso.split}

    subgraph split ["enso.split"]
        B -->|<b>swap</b> via<br/>sushiswap-router| E((USDC))
        B -->|<b>swap</b> via<br/>sushiswap-router| F((wETH))
    end

    E -->|<b>addLiquidity</b> via<br/>sushiswap-v2| G((SLP))
    F -->|<b>addLiquidity</b> via<br/>sushiswap-v2| G

Route mechanics:

  1. Split WBTC into two paths via enso
    1. Swap a portion of WBTC to USDC via sushiswap-router
    2. Swap a portion WBTC to wETH via sushiswap-router
  2. Deposit USDC and wETH to SLP via sushiswap-v2
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
export async function wbtcSushiswapLpToken() {
  const chainId = 747474;
  const TOKEN_IN = "0x0913DA6Da4b42f538B445599b46Bb4622342Cf52"; // WBTC
  const TOKEN_OUT = "0xf9B1AE5F1929F9A4De548e98e0393ae1A9d1D0f8"; // SLP
  const amountIn = parseUnits("1", 8);

  const routeParams: RouteParams = {
    fromAddress: userAddress,
    receiver: userAddress,
    chainId: chainId,
    destinationChainId: 747474,
    amountIn: [amountIn.toString()],
    tokenIn: [TOKEN_IN],
    tokenOut: [TOKEN_OUT],
    routingStrategy: "router",
    slippage: "150",
    referralCode: "build-on-katana"
  };

  const approvalData = await client.getApprovalData({
    amount: amountIn.toString(),
    chainId: chainId,
    tokenAddress: TOKEN_IN,
    fromAddress: userAddress,
  });

  await sendEoa(approvalData.tx, approvalData.gas);
  const route = await client.getRouteData(routeParams);
  await sendEoa(route.tx, route.gas);
  return route;
}

Deposit USDT to Morpho Blue steakUSDC Lending Vault

This route deposits USDT to steakUSDC through a simple swap and deposit mechanism using Morpho Blue vaults.

Try this route →

Route mechanics:

  1. Swap USDT to USDC via sushiswap-router
  2. Deposit USDC to steakUSDC via morpho-blue-vaults
flowchart LR
    A((USDT)) -->|<b>swap</b> via<br/>sushiswap-router| B((USDC))
    B -->|<b>deposit</b> via<br/>morpho-blue-vaults| C((steakUSDC))
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
export async function vaultBridgeUsdtSteakusdc(){
  const chainId = 747474;
  const TOKEN_IN = "0x2DCa96907fde857dd3D816880A0df407eeB2D2F2"; // USDT
  const TOKEN_OUT = "0x61D4F9D3797BA4dA152238c53a6f93Fb665C3c1d"; // steakUSDC
  const amountIn = parseUnits("100", 6);

  const routeParams: RouteParams = {
    fromAddress: userAddress,
    receiver: userAddress,
    chainId: chainId,
    destinationChainId: 747474,
    amountIn: [amountIn.toString()],
    tokenIn: [TOKEN_IN],
    tokenOut: [TOKEN_OUT],
    routingStrategy: "router",
    slippage: "150",
    referralCode: "build-on-katana"
  };

  const approvalData = await client.getApprovalData({
    amount: amountIn.toString(),
    chainId: chainId,
    tokenAddress: TOKEN_IN,
    fromAddress: userAddress,
  });

  await sendEoa(approvalData.tx, approvalData.gas);
  const route = await client.getRouteData(routeParams);
  await sendEoa(route.tx, route.gas);
  return route;
}

Withdraw from Morpho Blue with conversion

This route withdraws from a Morpho Blue vault position and converts the underlying asset to WBTC. The function redeems the vault token to get the underlying AUSD and then swaps it to WBTC.

Try this route →

flowchart LR
    A((bbqAUSD)) -->|<b>redeem</b> via<br/>morpho-blue-vaults| B((AUSD))
    B -->|<b>swap</b> via<br/>sushiswap-router| C((WBTC))

Route mechanics:

  1. Redeem bbqAUSD to AUSD via morpho-blue-vaults
  2. Swap AUSD to WBTC via sushiswap-router
export async function withdrawFromMorphoBlueAndSwapToWbtc() {
  const chainId = 747474;
  const TOKEN_IN = "0xdE6a4F28Acfe431DD1CfA2D9c7A3d8301624a841"; // bbqAUSD
  const TOKEN_OUT = "0x0913DA6Da4b42f538B445599b46Bb4622342Cf52"; // WBTC
  const amountIn = parseUnits("1", 18);

  const routeParams: RouteParams = {
    fromAddress: userAddress,
    receiver: userAddress,
    chainId: chainId,
    destinationChainId: 747474,
    amountIn: [amountIn.toString()],
    tokenIn: [TOKEN_IN],
    tokenOut: [TOKEN_OUT],
    routingStrategy: "router",
    slippage: "150",
    referralCode: "build-on-katana"
  };

  happyPathLog(routeParams);
  const approvalData = await client.getApprovalData({
    amount: amountIn.toString(),
    chainId: chainId,
    tokenAddress: TOKEN_IN,
    fromAddress: userAddress,
  });

  await sendEoa(approvalData.tx, approvalData.gas);
  const route = await client.getRouteData(routeParams);
  await sendEoa(route.tx, route.gas);
  return route;
}

Strategy vault position migration: Morpho to Yearn

This route redeems bbqUSDC, converts to ETH, and deposits into a Yearn vbETH vault.

Try this route →

flowchart LR
    A((bbqUSDC)) -->|<b>redeem</b> via<br/>morpho-blue-vaults| B((USDC))
    B -->|<b>swap</b> via<br/>sushiswap-router| C((wETH))
    C -->|<b>deposit</b> via<br/>yearn-v3| D((yvvbETH))

Route mechanics:

  1. Redeem bbqUSDC to USDC via morpho-blue-vaults
  2. Swap USDC to wETH via sushiswap-router
  3. Deposit wETH to yvvbETH via yearn-v3
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
export async function steakhouseHighYieldUsdcVbethYvault() {
  const chainId = 747474;
  const TOKEN_IN = "0x1445A01a57D7B7663CfD7B4EE0a8Ec03B379aabD"; // bbqUSDC
  const TOKEN_OUT = "0xE007CA01894c863d7898045ed5A3B4Abf0b18f37"; // yvvbETH
  const amountIn = parseUnits("1", 18);

  const routeParams: RouteParams = {
    fromAddress: userAddress,
    receiver: userAddress,
    chainId: chainId,
    destinationChainId: 747474,
    amountIn: [amountIn.toString()],
    tokenIn: [TOKEN_IN],
    tokenOut: [TOKEN_OUT],
    routingStrategy: "router",
    slippage: "150",
    referralCode: "build-on-katana"
  };

  const approvalData = await client.getApprovalData({
    amount: amountIn.toString(),
    chainId: chainId,
    tokenAddress: TOKEN_IN,
    fromAddress: userAddress,
  });

  await sendEoa(approvalData.tx, approvalData.gas);
  const route = await client.getRouteData(routeParams);
  await sendEoa(route.tx, route.gas);
  return route;
}

Zap deposit USDT to Yearn vbETH vault

This route swaps USDT to ETH and deposits into a Yearn vault for vbETH exposure.

Try this route →

flowchart LR
    A((USDT)) -->|<b>swap</b> via<br/>sushiswap-router| B((wETH))
    B -->|<b>deposit</b> via<br/>yearn-v3| C((yvvbETH))

Route mechanics:

  1. Swap USDT to wETH via sushiswap-router
  2. Deposit wETH to yvvbETH via yearn-v3
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
export async function usdTVbethYvault() {
  const chainId = 747474;
  const TOKEN_IN = "0x2DCa96907fde857dd3D816880A0df407eeB2D2F2"; // USDT
  const TOKEN_OUT = "0xE007CA01894c863d7898045ed5A3B4Abf0b18f37"; // yvvbETH
  const amountIn = parseUnits("100", 6);

  const routeParams: RouteParams = {
    fromAddress: userAddress,
    receiver: userAddress,
    chainId: chainId,
    destinationChainId: 747474,
    amountIn: [amountIn.toString()],
    tokenIn: [TOKEN_IN],
    tokenOut: [TOKEN_OUT],
    routingStrategy: "router",
    slippage: "150",
    referralCode: "build-on-katana"
  };

  happyPathLog(routeParams);
  const approvalData = await client.getApprovalData({
    amount: amountIn.toString(),
    chainId: chainId,
    tokenAddress: TOKEN_IN,
    fromAddress: userAddress,
  });

  await sendEoa(approvalData.tx, approvalData.gas);
  const route = await client.getRouteData(routeParams);
  await sendEoa(route.tx, route.gas);
  return route;
}

Deposit USDC to Charm Alpha

This route deposits USDC into a Charm Alpha vault position containing WBTC and ETH. The function splits the input USDC between WBTC and wETH tokens before depositing them into the vault.

Try this route →

flowchart LR
    A((USDC)) --> B{enso.split}

    subgraph split ["enso.split"]
        B -->|<b>swap</b> via<br/>sushiswap-router| E((WBTC))
        B -->|<b>swap</b> via<br/>sushiswap-router| F((wETH))
    end

    E -->|<b>deposit</b> via<br/>charm-alpha-vaults-v2| G((CHARM_VAULT))
    F -->|<b>deposit</b> via<br/>charm-alpha-vaults-v2| G

Route mechanics:

  1. Split USDC to WBTC and wETH via enso
    1. Swap a portion of USDC to WBTC
    2. Swap a portion USDC to wETH
  2. Deposit WBTC and wETH to WBTCETH30 via charm-alpha-vaults-v2

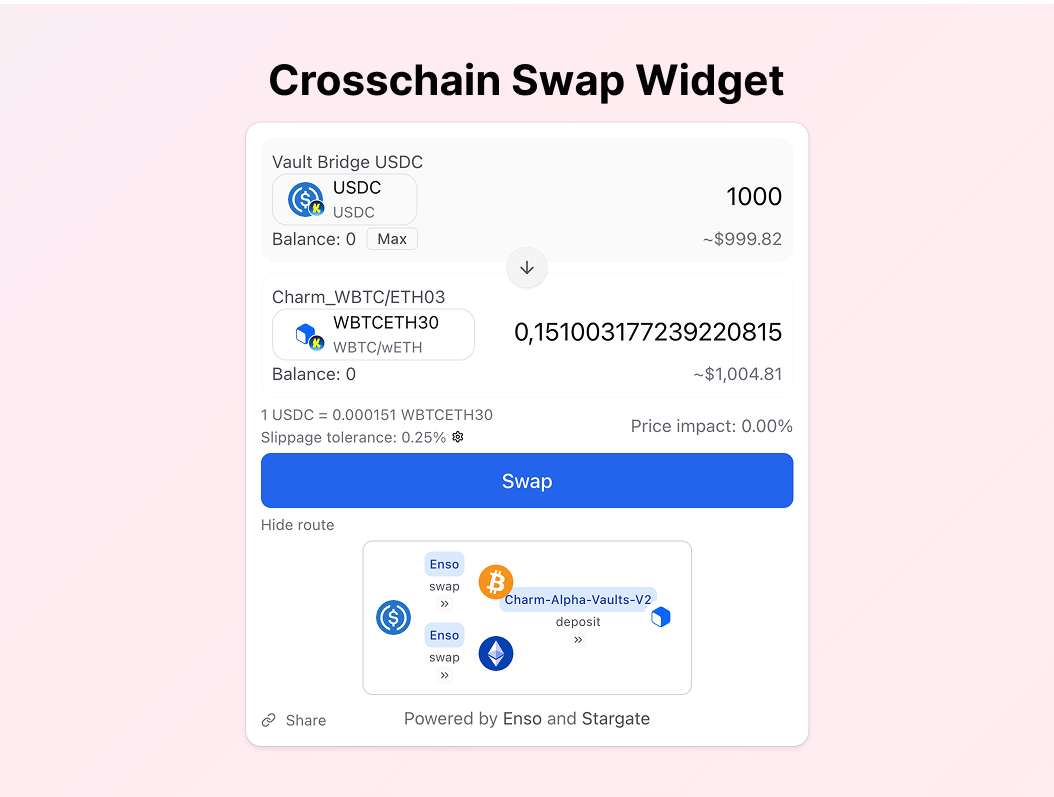

export async function depositUsdcToCharmWbtcEth03() {
  const chainId = 747474;
  const TOKEN_IN = "0x203A662b0BD271A6ed5a60EdFbd04bFce608FD36"; // USDC
  const TOKEN_OUT = "0x85b88F8ACEB5CaA67e240E6C2567F954B0C58D99"; // WBTCETH30
  const amountIn = parseUnits("100", 6);

  const routeParams: RouteParams = {
    fromAddress: userAddress,
    receiver: userAddress,
    chainId: chainId,
    destinationChainId: 747474,
    amountIn: [amountIn.toString()],
    tokenIn: [TOKEN_IN],
    tokenOut: [TOKEN_OUT],
    routingStrategy: "router",
    slippage: "150",
    referralCode: "build-on-katana"
  };

  happyPathLog(routeParams);
  const approvalData = await client.getApprovalData({
    amount: amountIn.toString(),
    chainId: chainId,
    tokenAddress: TOKEN_IN,
    fromAddress: userAddress,
  });

  await sendEoa(approvalData.tx, approvalData.gas);
  const route = await client.getRouteData(routeParams);
  await sendEoa(route.tx, route.gas);
  return route;
}

Withdraw from Charm Alpha vault with conversion

This route redeems a Charm Alpha vault position and converts the underlying assets to AUSD. The function withdraws USDC and wETH from the vault and swaps both tokens to the target AUSD token.

Try this route →

flowchart LR
    A((USDCETH5)) -->|<b>redeem</b> via<br/>charm-alpha-vaults-v2| B((USDC))
    A -->|<b>redeem</b> via<br/>charm-alpha-vaults-v2| C((wETH))

    B --> D{enso.merge}
    C --> D

    subgraph merge ["enso.merge"]
        D -->|<b>swap</b> via<br/>sushiswap-router| E((AUSD))
        D -->|<b>swap</b> via<br/>sushiswap-router| E
    end

Route mechanics:

  1. Redeem USDCETH5 to USDC and wETH via charm-alpha-vaults-v2
  2. Merge USDC and wETH to AUSD via enso with swapping
export async function withdrawCharmVbusdcVbeth005ToAusd() {
  const chainId = 747474;
  const TOKEN_IN = "0xc78c51F88adFbAdcDfafCfeF7F5E3d3c6C7d5129"; // USDCETH5
  const TOKEN_OUT = "0x00000000eFE302BEAA2b3e6e1b18d08D69a9012a"; // AUSD
  const amountIn = parseUnits("1", 18);

  const routeParams: RouteParams = {
    fromAddress: userAddress,
    receiver: userAddress,
    chainId: chainId,
    destinationChainId: 747474,
    amountIn: [amountIn.toString()],
    tokenIn: [TOKEN_IN],
    tokenOut: [TOKEN_OUT],
    routingStrategy: "router",
    slippage: "150",
    referralCode: "build-on-katana"
  };

  happyPathLog(routeParams);
  const approvalData = await client.getApprovalData({
    amount: amountIn.toString(),
    chainId: chainId,
    tokenAddress: TOKEN_IN,
    fromAddress: userAddress,
  });

  await sendEoa(approvalData.tx, approvalData.gas);
  const route = await client.getRouteData(routeParams);
  await sendEoa(route.tx, route.gas);
  return route;
}

Deposit USDC to Midas Restaked SOL (Re7SOL)

This route deposits USDC to Midas Re7SOL tokens.

Try this route →

Route mechanics:

  1. Swap USDC to uSOL via sushiswap-router
  2. Deposit uSOL to mRe7SOL via midas-rwa
flowchart LR
    A((USDC)) -->|<b>swap</b> via<br/>sushiswap-router| B((uSOL))
    B -->|<b>deposit</b> via<br/>midas-rwa| C((mRe7SOL))
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
export async function usdcMidasRe7sol(){
  const chainId = 747474;
  const TOKEN_IN = "0x203A662b0BD271A6ed5a60EdFbd04bFce608FD36"; // USDC
  const TOKEN_OUT = "0xC6135d59F8D10c9C035963ce9037B3635170D716"; // mRe7SOL
  const amountIn = parseUnits("100", 6);

  const routeParams: RouteParams = {
    fromAddress: userAddress,
    receiver: userAddress,
    chainId: chainId,
    destinationChainId: 747474,
    amountIn: [amountIn.toString()],
    tokenIn: [TOKEN_IN],
    tokenOut: [TOKEN_OUT],
    routingStrategy: "router",
    slippage: "150",
    referralCode: "build-on-katana"
  };

  const approvalData = await client.getApprovalData({
    amount: amountIn.toString(),
    chainId: chainId,
    tokenAddress: TOKEN_IN,
    fromAddress: userAddress,
  });

  await sendEoa(approvalData.tx, approvalData.gas);
  const route = await client.getRouteData(routeParams);
  await sendEoa(route.tx, route.gas);
  return route;
}

Deposit USDC to Steer SUSHI-USDC Automated LP Management

This route creates a Steer UniV3 vault position by splitting USDC into SUSHI and USDC components.

Try this route →

Route mechanics:

  1. Split USDC into two paths via enso
    1. Swap a portion USDC to SUSHI via sushiswap-router
    2. Keep a portion as USDC
  2. Deposit SUSHI and USDC to STEERUV12 via steer
flowchart LR
    A((USDC)) --> B{enso.split}

    subgraph split ["enso.split"]
        B -->|<b>swap</b> via<br/>sushiswap-router| E((SUSHI))
        B -->|<b>keep as</b><br/>USDC| F((USDC))
    end

    E -->|<b>deposit</b> via<br/>steer| G((STEERUV12 <br/> LP))
    F -->|<b>deposit</b> via<br/>steer| G
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
export async function usdcSteerUniv3Vault() {
  const chainId = 747474;
  const TOKEN_IN = "0x203A662b0BD271A6ed5a60EdFbd04bFce608FD36"; // USDC
  const TOKEN_OUT = "0x4d3C354499389c52F1090Ba4c79bf4F4C083b274"; // STEERUV12
  const amountIn = parseUnits("100", 6);

  const routeParams: RouteParams = {
    fromAddress: userAddress,
    receiver: userAddress,
    chainId: chainId,
    destinationChainId: 747474,
    amountIn: [amountIn.toString()],
    tokenIn: [TOKEN_IN],
    tokenOut: [TOKEN_OUT],
    routingStrategy: "router",
    slippage: "150",
    referralCode: "build-on-katana"
  };

  const approvalData = await client.getApprovalData({
    amount: amountIn.toString(),
    chainId: chainId,
    tokenAddress: TOKEN_IN,
    fromAddress: userAddress,
  });

  await sendEoa(approvalData.tx, approvalData.gas);
  const route = await client.getRouteData(routeParams);
  await sendEoa(route.tx, route.gas);
  return route;
}

Transform WBTC to Midas Restaked SOL with High Slippage

This route converts WBTC to Midas Re7SOL tokens through SOL bridging with extremely high price impact.

Try this route →

flowchart LR
    A((WBTC)) -->|<b>swap</b> via<br/>sushiswap-router| B((uSOL))
    B -->|<b>deposit</b> via<br/>midas-rwa| C((mRe7SOL))

Route mechanics:

  1. Swap WBTC to uSOL via sushiswap-router
  2. Deposit uSOL to mRe7SOL via midas-rwa
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
export async function wbtcMidasRe7sol() {
  const chainId = 747474;
  const TOKEN_IN = "0x0913DA6Da4b42f538B445599b46Bb4622342Cf52"; // WBTC
  const TOKEN_OUT = "0xC6135d59F8D10c9C035963ce9037B3635170D716"; // mRe7SOL
  const amountIn = parseUnits("1", 8);

  const routeParams: RouteParams = {
    fromAddress: userAddress,
    receiver: userAddress,
    chainId: chainId,
    destinationChainId: 747474,
    amountIn: [amountIn.toString()],
    tokenIn: [TOKEN_IN],
    tokenOut: [TOKEN_OUT],
    routingStrategy: "router",
    slippage: "150",
    referralCode: "build-on-katana"
  };

  const approvalData = await client.getApprovalData({
    amount: amountIn.toString(),
    chainId: chainId,
    tokenAddress: TOKEN_IN,
    fromAddress: userAddress,
  });

  await sendEoa(approvalData.tx, approvalData.gas);
  const route = await client.getRouteData(routeParams);
  await sendEoa(route.tx, route.gas);
  return route;
}

Resources
